    Re-imagining the connection between furniture and building.

    Interpole™ by Antenna Design, is a unique vertical planning approach applicable in open plan, private offices and activity spaces. Based on a floor-to-ceiling H-post, Interpole provides a structure for technology, space definition and storage, wherever needed.

    Key Benefits

    TECHNOLOGY ACCESS. The H-post features separate channels for power and low voltage cable supply from the ceiling to open plan systems or activity spaces without costly and disruptive junction boxes in the floor.


    MULTI-FUNCTIONAL BOUNDARY. Fitted with a whiteboard or tackable fabric screens, Interpole becomes a way to define space in the open plan, while delivering a valuable communication tool.


    STORAGE AND SUPPORT. Cabinets and shelves mounted between poles provide single sided or shared horizontal storage to support and define workspaces, offices and activity spaces.

    Hub

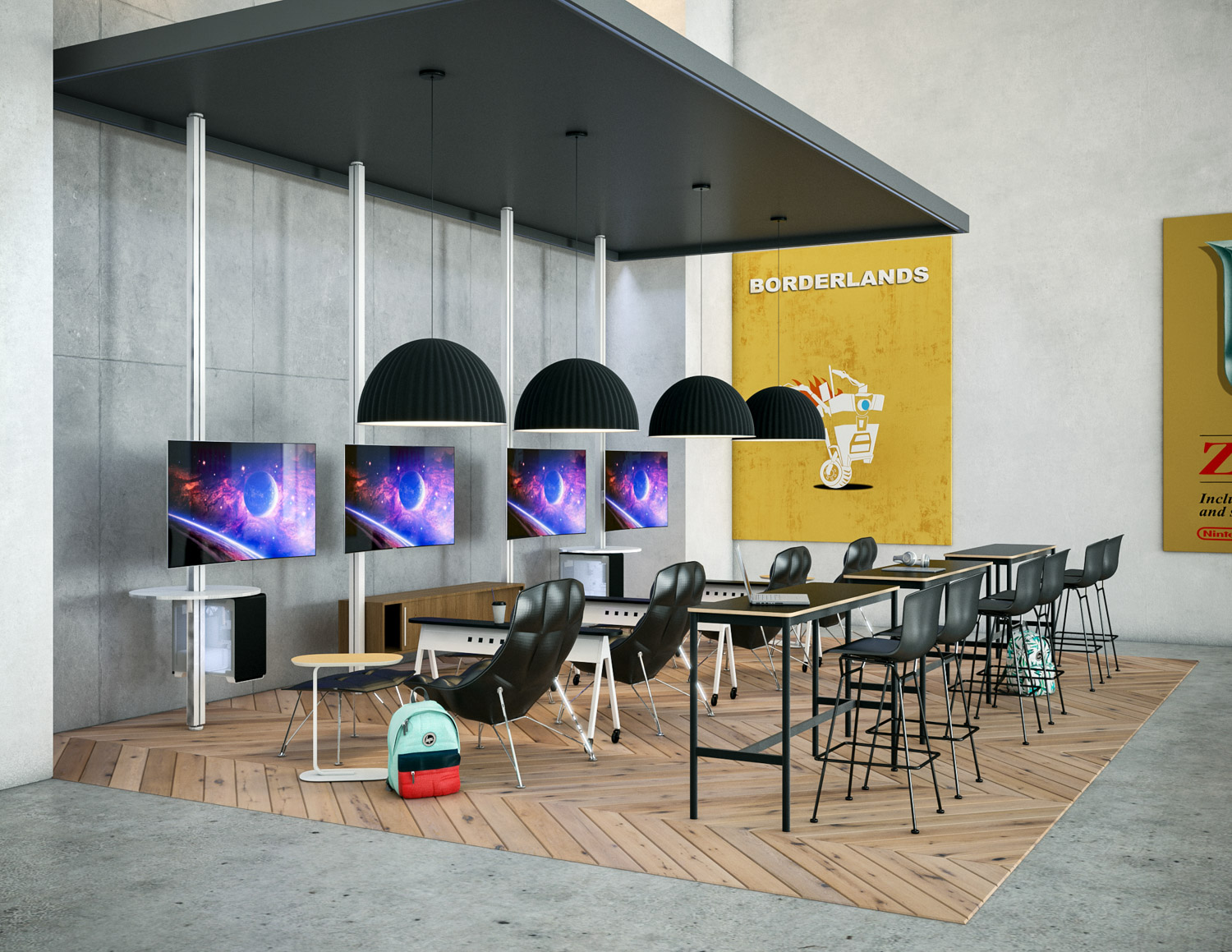

    Interpole provides convenient power access for informal activity spaces at lounge height, table height or standing height.

    Display

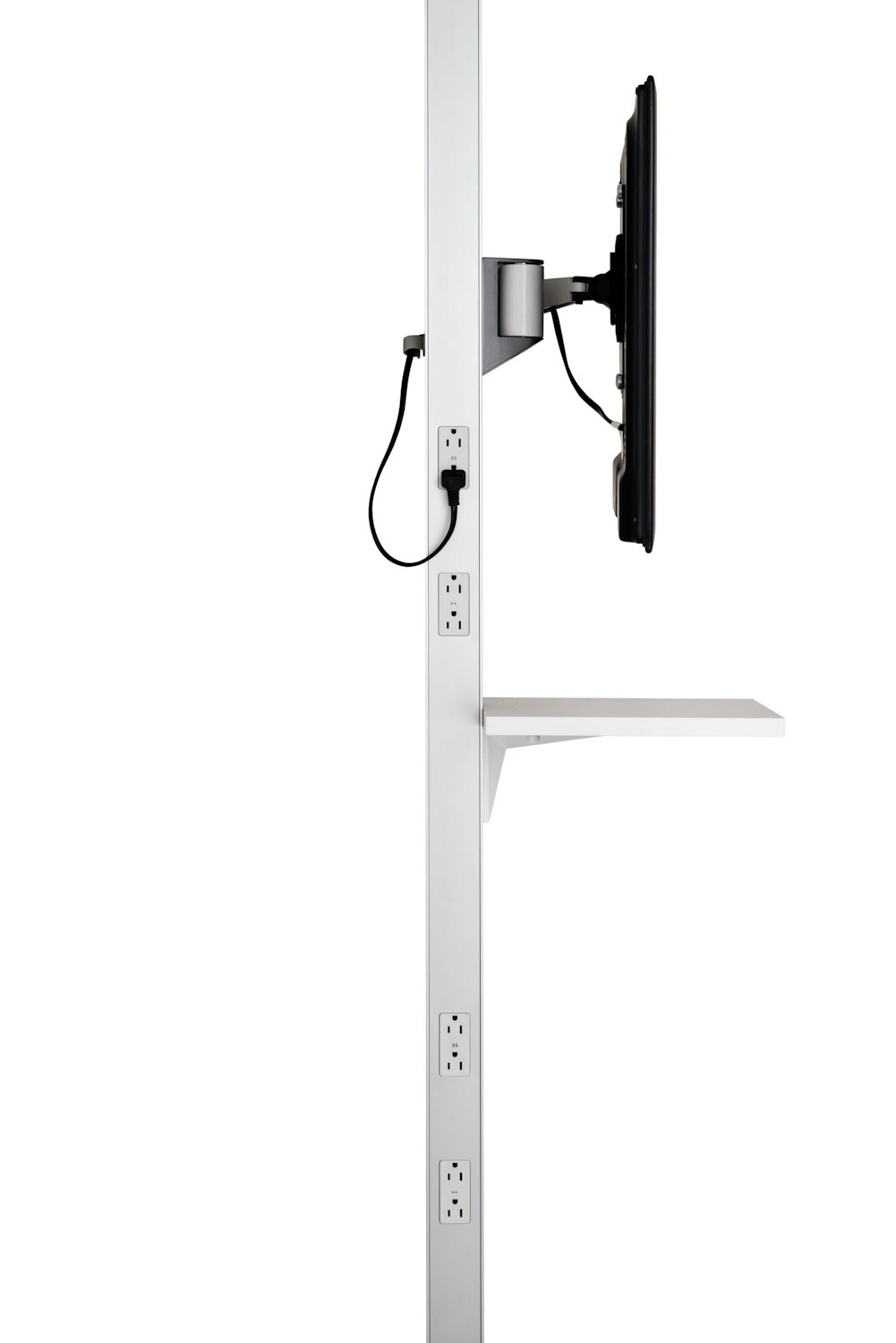

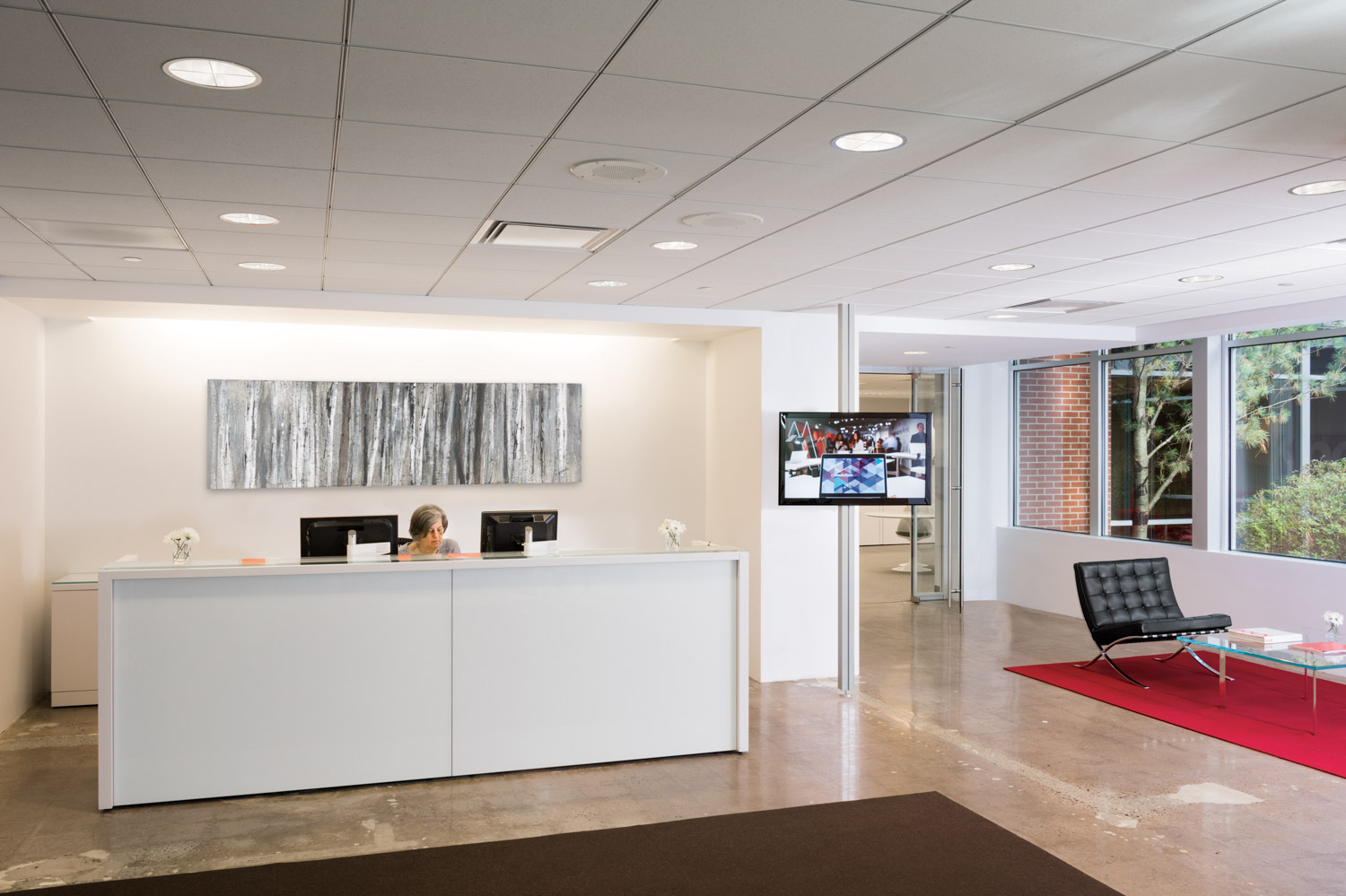

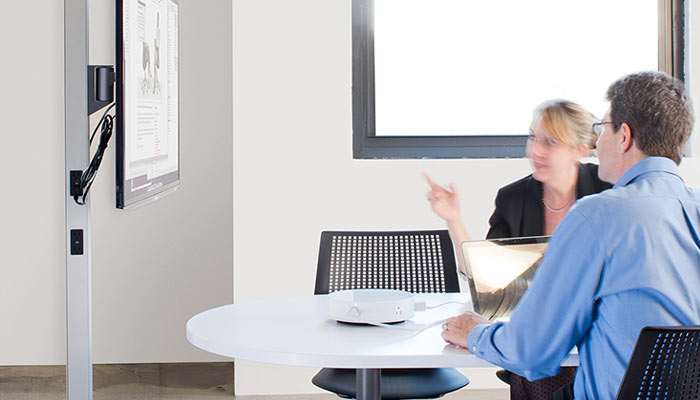

    Interpole with Sapper Monitor Arm or Sleeve Mount supports flexible video displays at any height for meeting spaces, private offices or community areas.

    Conduit

    Interpole can serve as an empty power pole to manage power and communications from the ceiling to open plan desk or panel systems. Two open side channels in the H-post with snap-on covers separate power supply from sensitive data cables. Ceiling infeeds and cables can emerge at the bottom of the pole or at any height for direct connection to panel bases, Fence, Service Wall or Horsepower.

    Screens

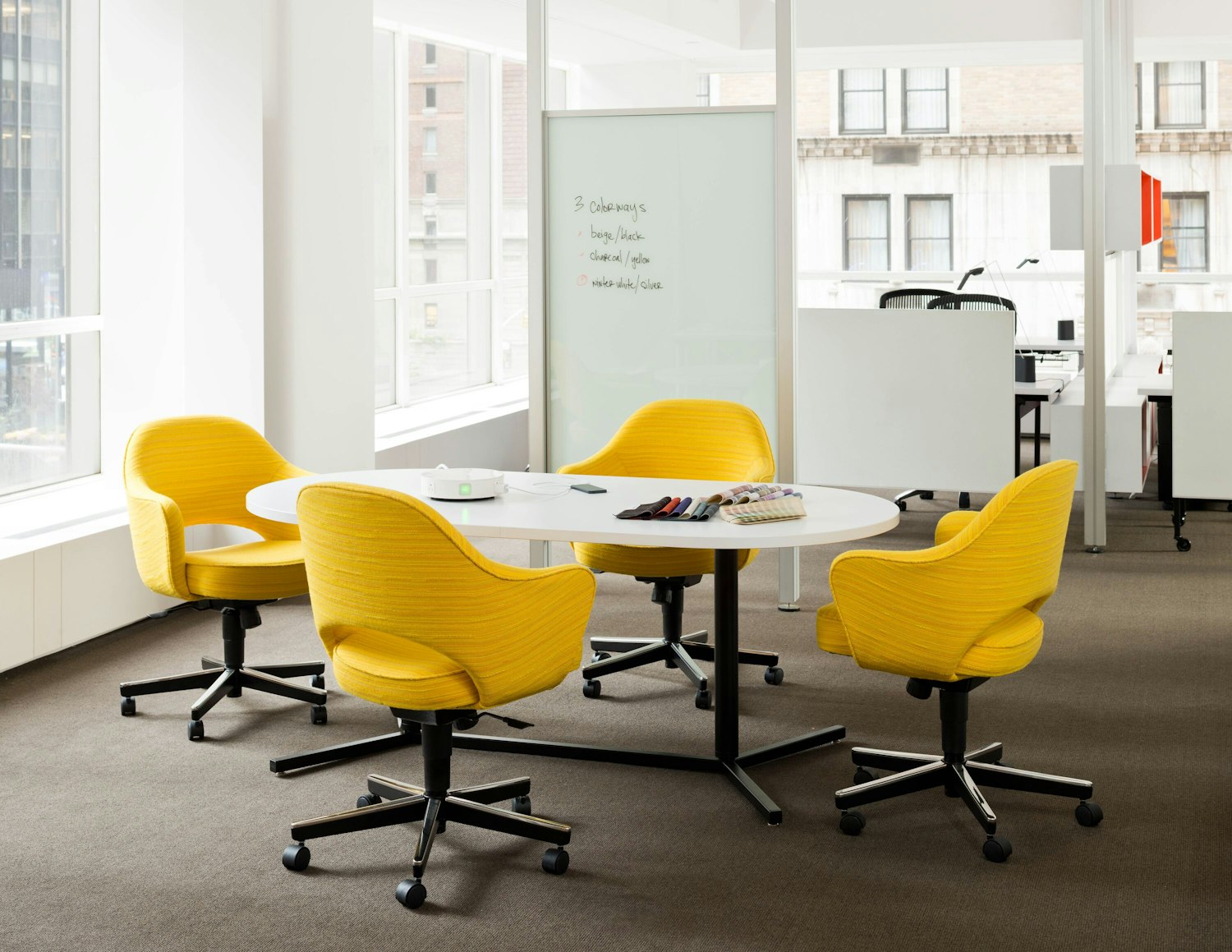

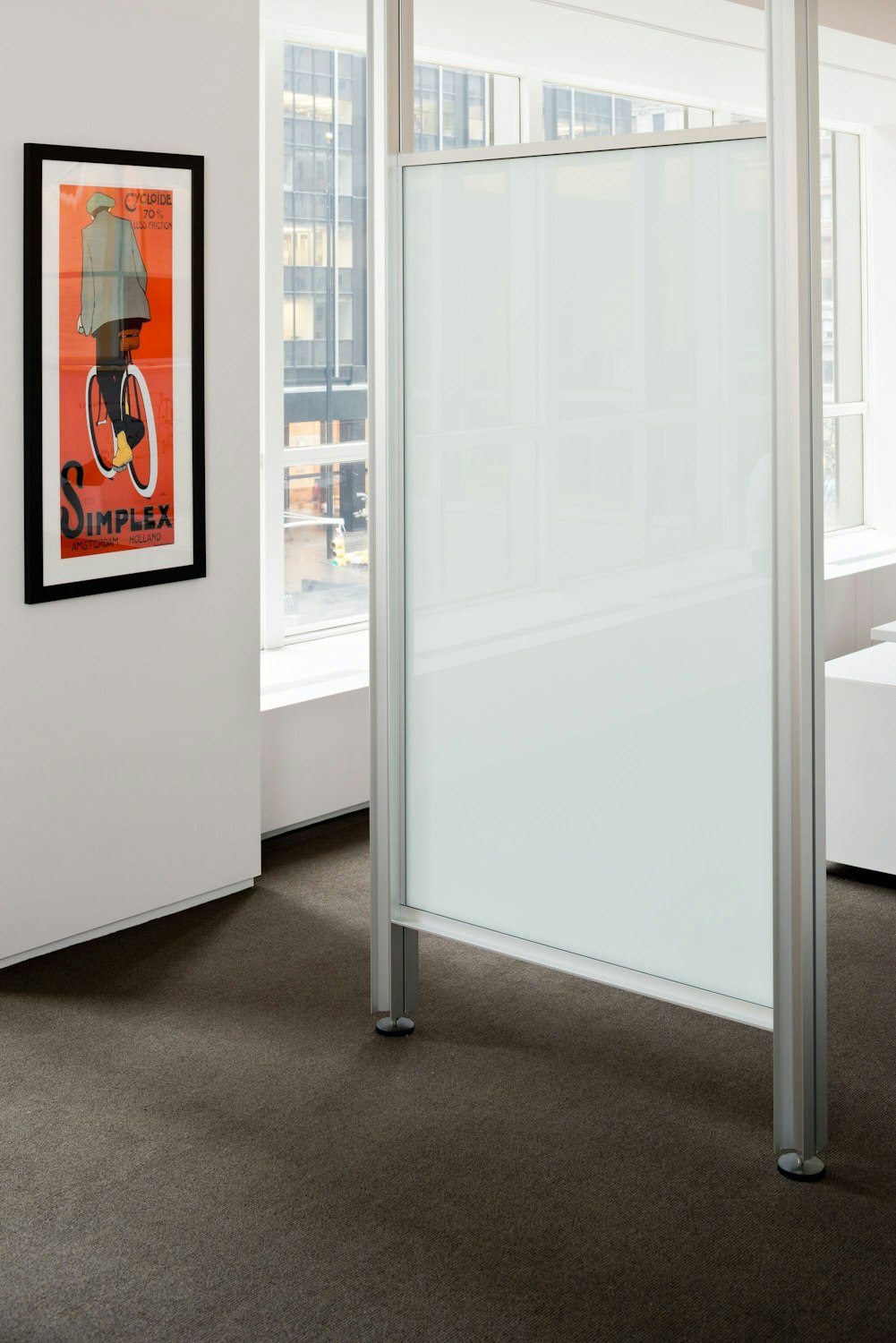

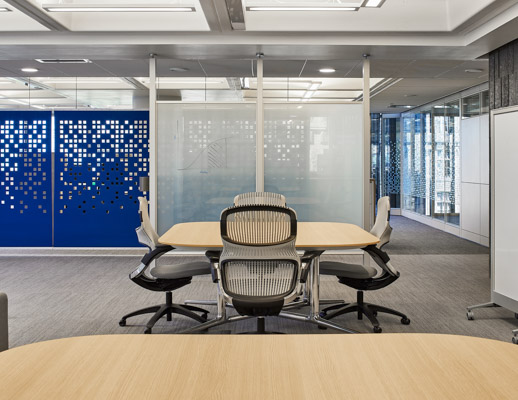

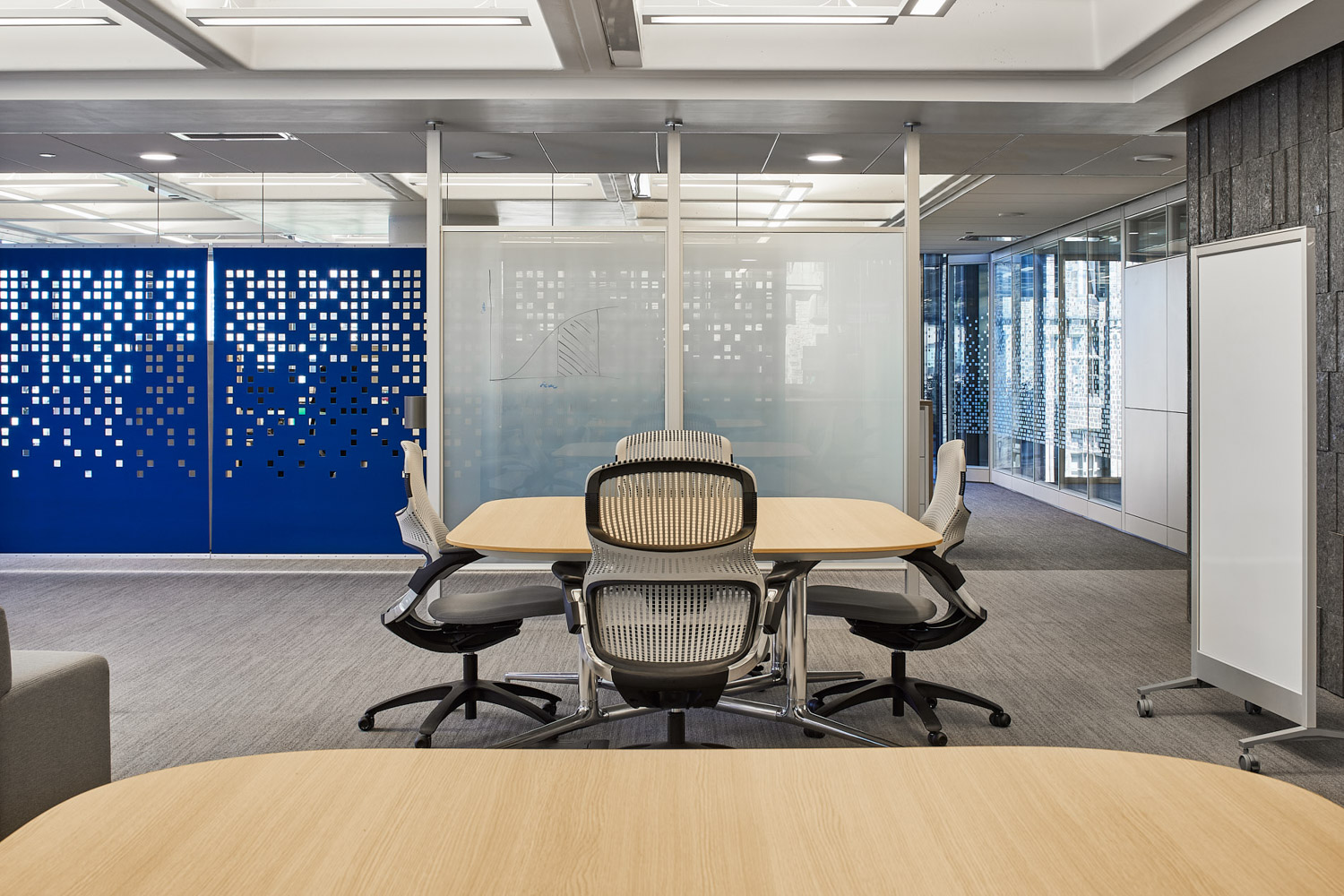

    Interpole screens mount between the slots of power poles to form multi-functional boundaries of activity spaces. Screens are available in translucent or opaque whiteboard glass, laminate whiteboard or combination laminate and tackable fabric surfaces. All have a perimeter frame available in natural anodized aluminum or bright white painted surface.

    Storage

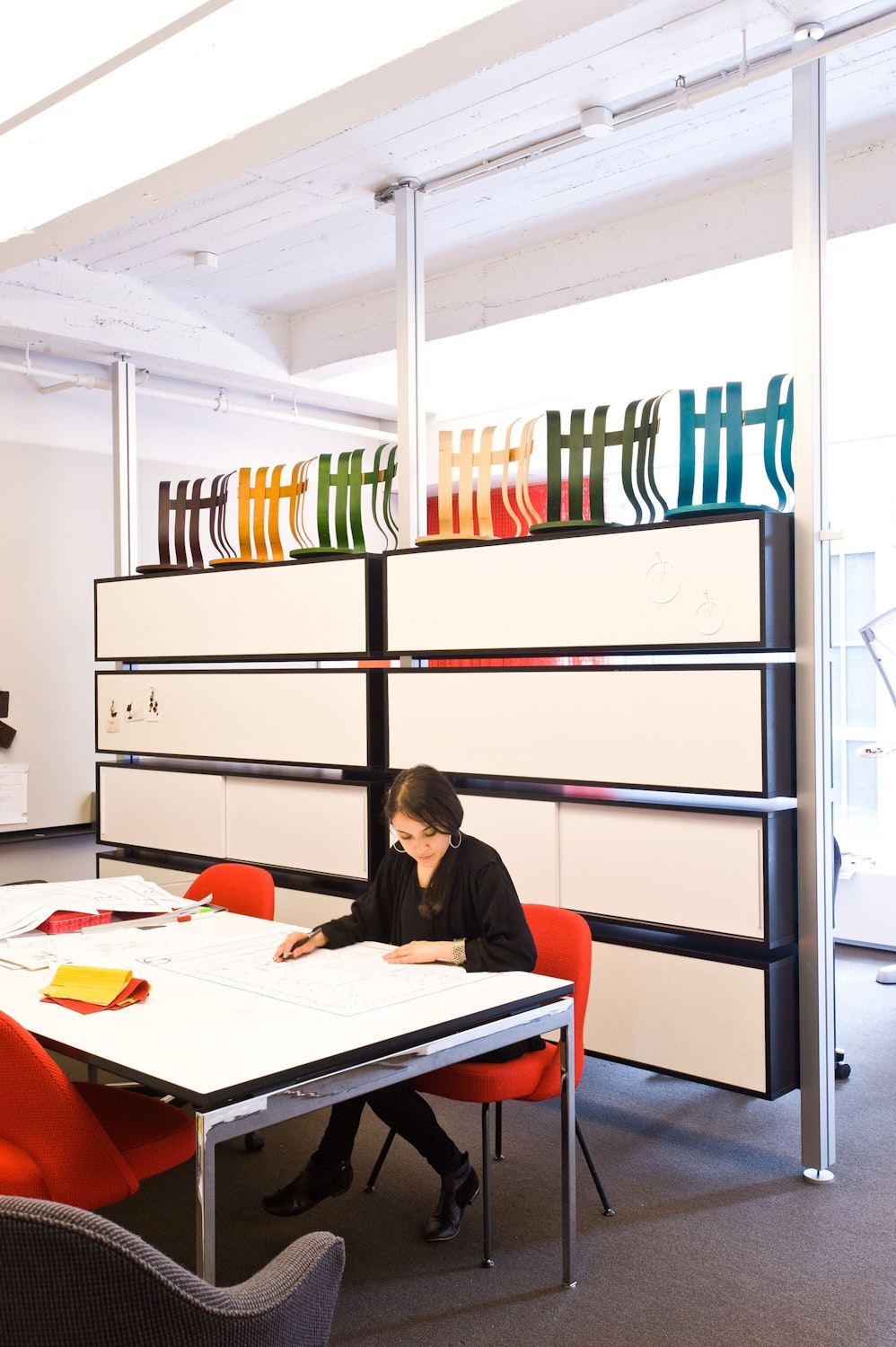

    Interpole storage between poles serves as a spine for open plan workstations or as a storage wall in enclosed work areas. Storage components may be combined with partial height screens offering whiteboard or tackable surfaces adjacent to desk tops. All storage components are available in laminate or wood surface on wood core.

    Image Library

    View Gallery

    Downloads

    Brochures & Product Literature

    Sustainable Design

    Planning Tools

    Installation Instructions

    Dimensions

    • The Pole
      • Starts at 12'3" tall and can be cut on site. 47" extension kit available for taller ceilings
      • Ceiling trim kit available for applications where the pole passes through a suspended ceiling
      • Pole must be secured to floor and ceiling with bolts
      • Full-height, snap-on covers enclose two separate channels for power components and communications cables

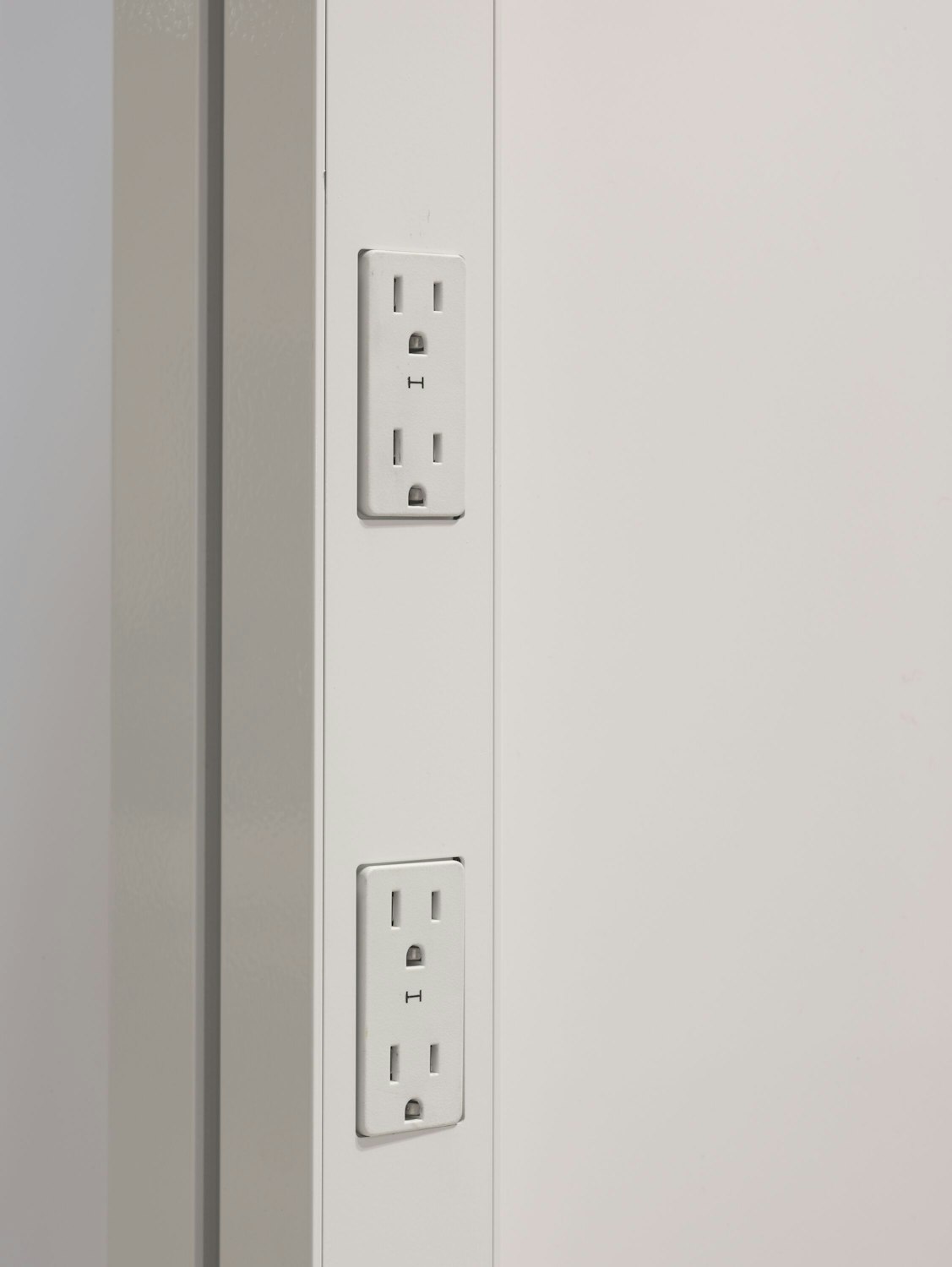

      • Interpole can be specified with four outlet openings on one or both sides, in three configurations:
        • Low: Outlets centered at 12, 18, 24, 30" above bottom of covers (beginning 1½" above floor)
        • Medium: Outlets centered at 12, 18, 36 and 42" above the bottom of the covers
        • High: Outlets centered at 12, 18, 60 and 66" above the bottom of the covers
    • Storage
      • Horizontal storage options include open shelves with bookends, dual access shelves with center partition, single-sided and shared open shelves with back and cabinets with sliding doors
      • Horizontal components are 36", 42", 48", 54" or 60"W x 15"H x 15 5/8"D
      • Vertical storage cabinets mount to one side of a pole, with shelves or a coat hook, with or without a hinged door
      • Vertical cabinet is 64.5" H x 15" W x 15 5/8 "D
      • Both horizontal and vertical components are available with laminate or veneer surface case or doors
      • Gadget box also available. Mounts to side of pole for small electronics or personal items
      • Gadget box is12"H x 9"W x 10 1/2"D
    • Screens
      • Available in translucent or opaque whiteboard glass, laminate whiteboard or combination laminate and tackable fabric surfaces
      • Perimeter frame is available with natural anodized aluminum finish or bright white paint
      • Can be installed at any starting height, from 5" to 24" or more to establish boundaries of any overall horizon
      • Optional bottom tray holds dry-erase markers, pushpins or display boards in a 1" deep channel on either side of the screen surface

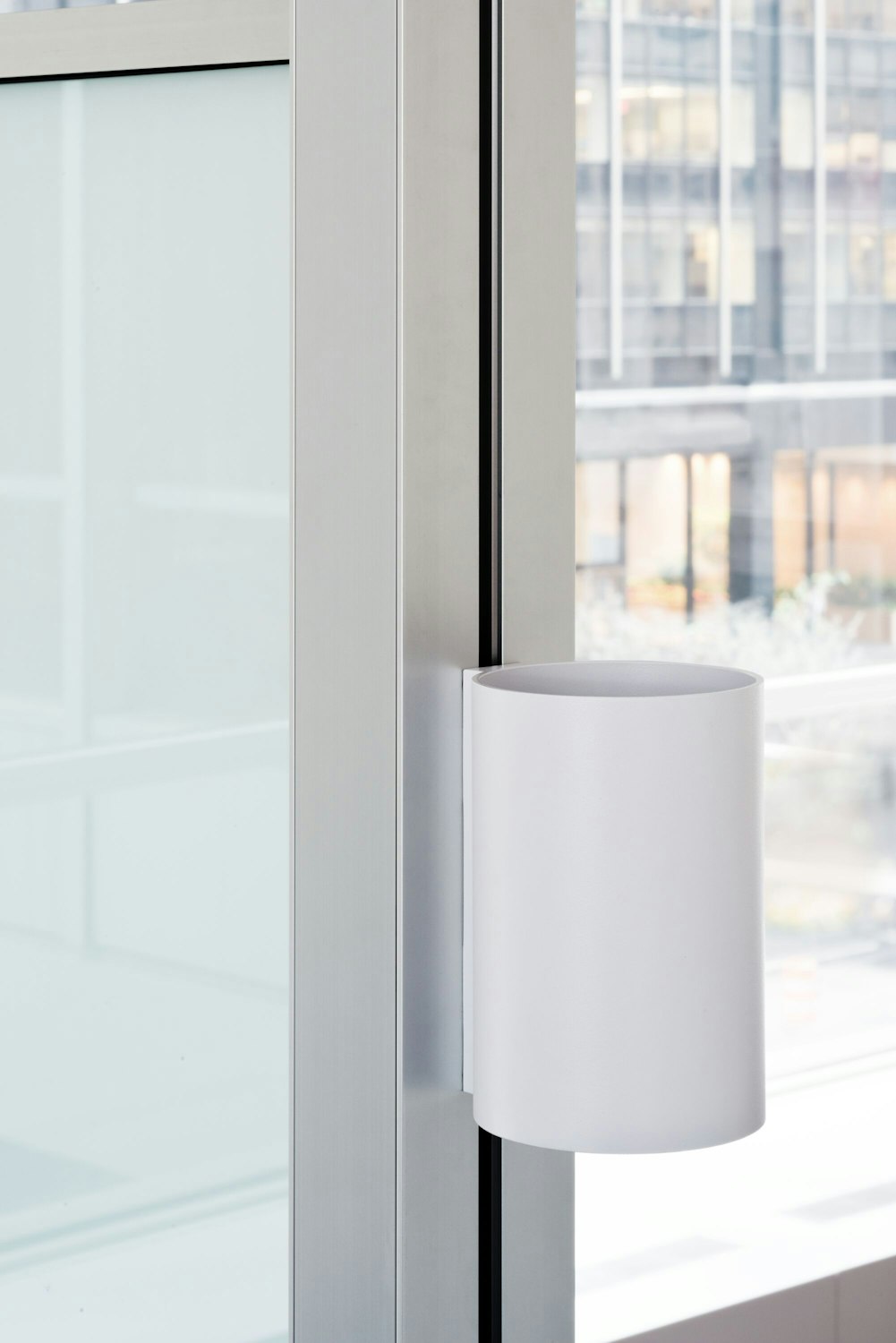

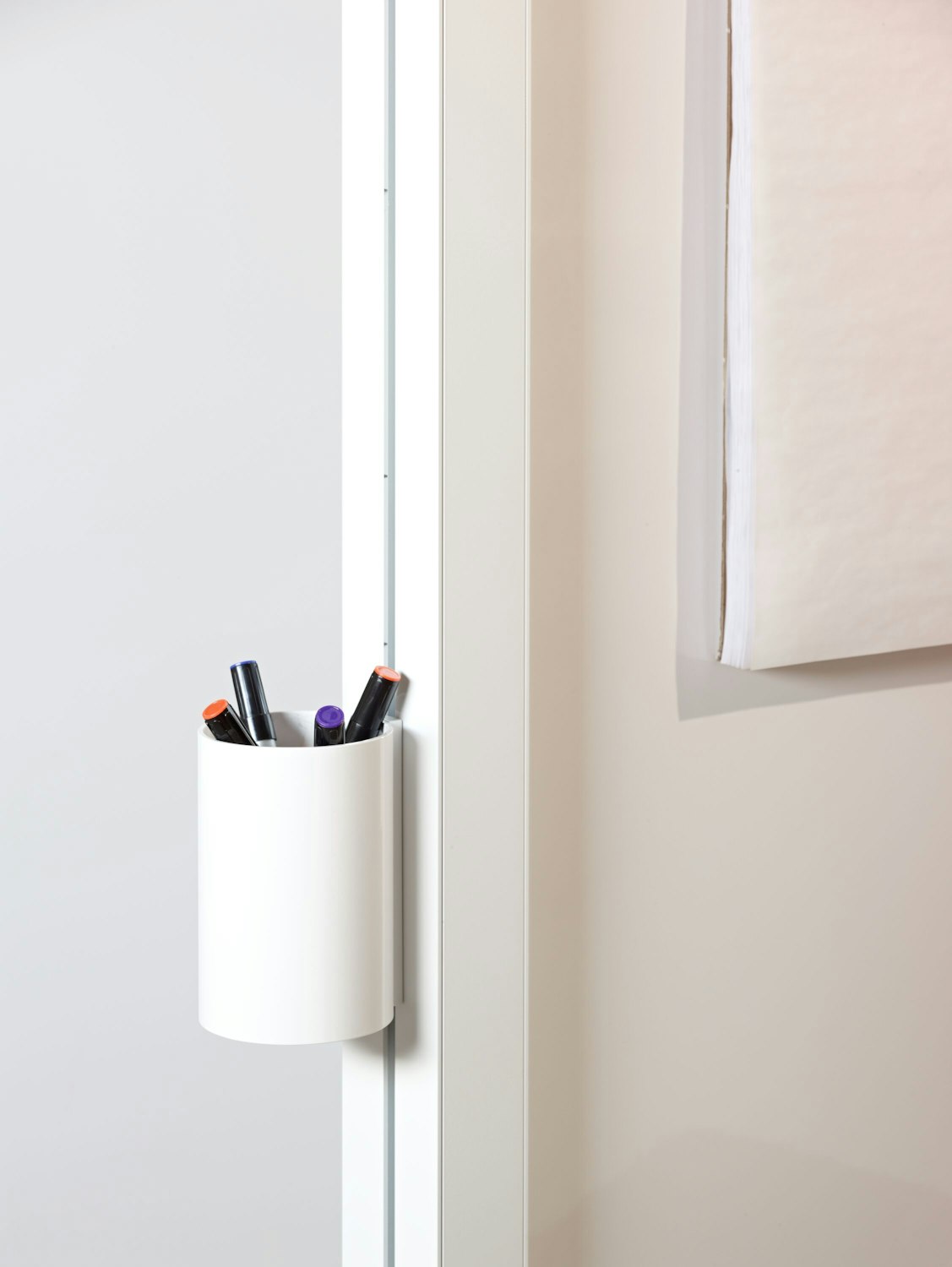

      • Cup accessory can be attached to the outside of a pole at the end of a whiteboard screen to hold markers or eraser cloth
      • Available in three heights: 31.5", 48" and 64.5"
      • Available in five widths: 36", 42", 48", 54" and 60"
    • Accessories

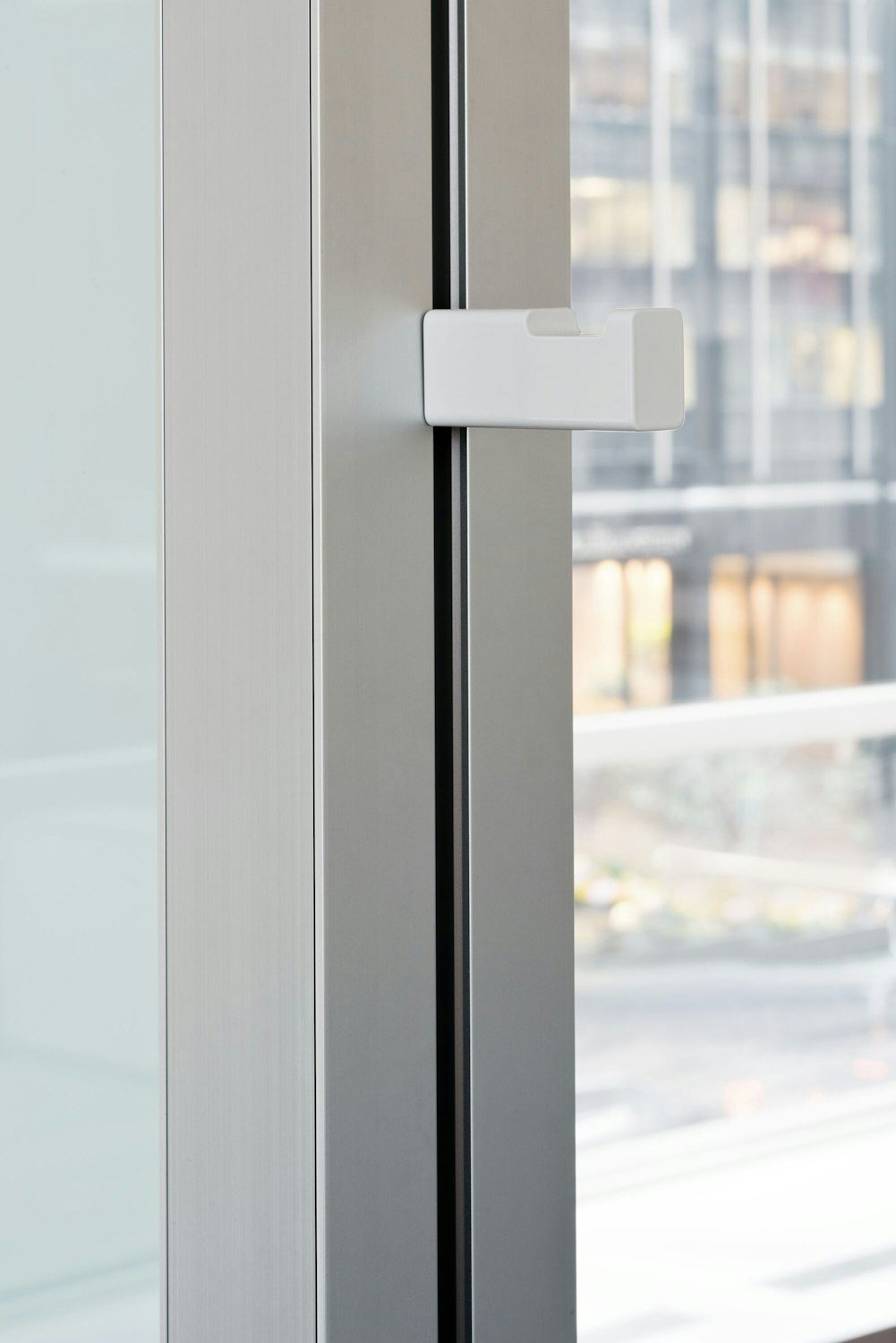

      • Interpole accessories engage continuous slots on either side of pole, independently of power channels

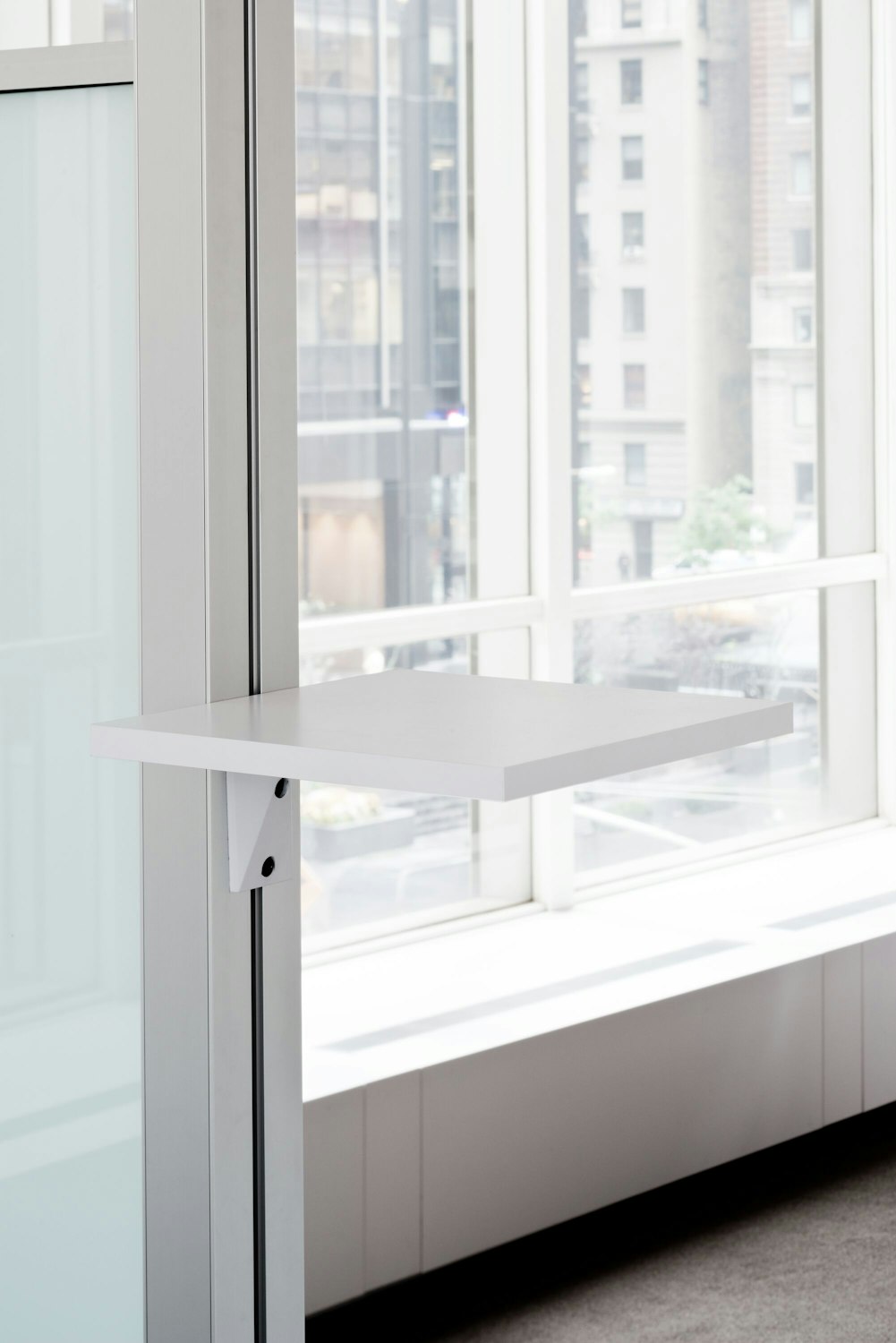

      • Accessories include 12" square cantilevered shelf and 30" diameter counter surface in two halves that fit around the pole at any height
      • Coat and bag hooks, cable clips, gadget box and monitor mounts are also available
